LinkZone Brand perfect firefighting equipment for Fire Protection Engineering

Product Overview

Top -ranking automatic fire water monitor

Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shutoff after the fire is extinguished.

FEATURES AT A GLANCE

DIMENSION:300×310mm

NET WEIGHT:6KG

MODEL: ZDMS0.6/10S-LZ II

SENSOR:IR SENSOR

VOLTAGE:220V

COMMUNICATION METHOD:CAN

KEYWORD:INTELLIGENT FIRE MONITOR

PRODUCT SPECIFICATIONS

No	Item	Standard &Requirements	Inspection results
1	Rated working pressure (MPa)	≤0.8	0.6	/
2	Rated flow (L / s)	5×(1±8%)	5.05	/
3	Maximum protection radius(m)	≥30	30	/
4	Jet radius (m)	≥34	34	/
5	Monitoring radius(m)	≥40	40	/
6	Positioning time(s)	≤30	29.5	29.9
7	Installation height (m)	6~15	6	15
8	Horizontal swing angle(°)	≥180	360
9	Minimum pitch profile(°)	-90~+30	-90~+30
10	Diameter of water-inlet(mm)	Φ 34.5 ± 0.5	Φ 34.5 ± 0.5
11	Diameter of water-outlet(mm)	Φ 15.5 ± 0.5	Φ 15.5 ± 0.5

PRODUCT CONFIGURATION

Control host

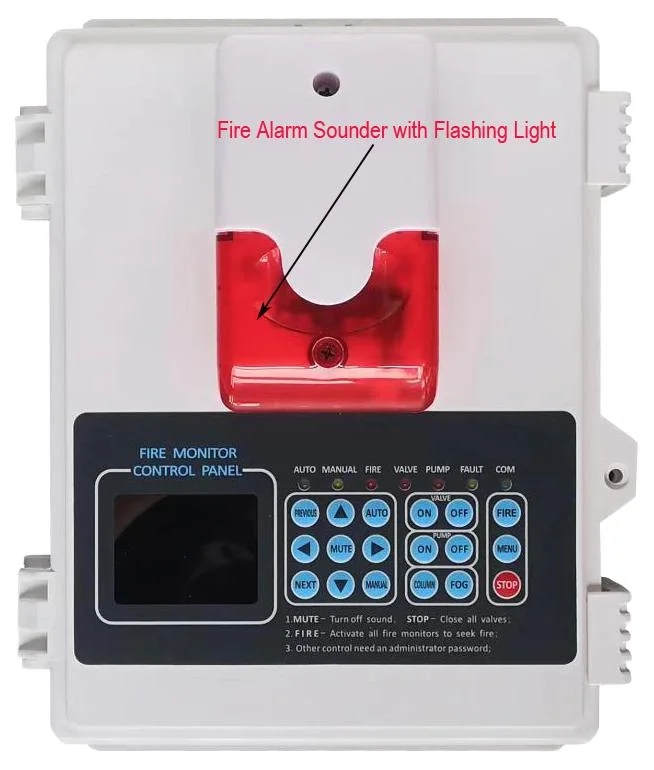

Electric control box

Field operation panel

SALES AND SERVICE NETWORK

Successful Project

Project in Malaysia

Project in Azerbaijan

Project in Singapore

WuHan International Airport

XIXIA gym

LIAONING SUIHUA WANDA PLAZA

ZHONGBAI LAIFENG shopping mall

CHUZHOU science and technology museum

CHONGQING XINLONG Industrial plant

FAQ

Q1: Are you a manufacturer?

A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Fire Water Cannon.

Q2: What certificates do you have?

A2: We only have CCC and ISO at present. FM or UL will be got within next year.

Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?

A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.

We are a National Standard high-tech firefighting equipment manufacturing Enterprise from China and we do technology researching,structural designing,production, sales and service all by ourself.We have the most advanced technology for automatic fire targeting technology.We are the member of China Fire Protection Association.We have obtained 23 utility model patents, 8 invention patents and 35 computer software copyright rights for our fire monitors.Our main product is automatic fire monitors which have been used in thousands of projects in China and overseas.We have small water cannons,large normal water cannons,large explosion proof water/foam cannon,large explosion proof and waterproofing water/foam cannon.Our products are very popular with the Chinese government.

Our products are widely used in Industrial,commercial and residential fields.Such as airport, high-speed railway station, bus station, power plants,industrial plants,chemical plant, warehouses,gas station, oil port,hotel atrium, museum,cinema, library, TV studio, gymnasium, science and technology museum, exhibition hall, convention center, theater, cinema, civic activity center, helicopter hangar,  logistics centers, hospitals, large shopping malls, commercial complexes, colleges and universities, coal mines and other places with large space.
