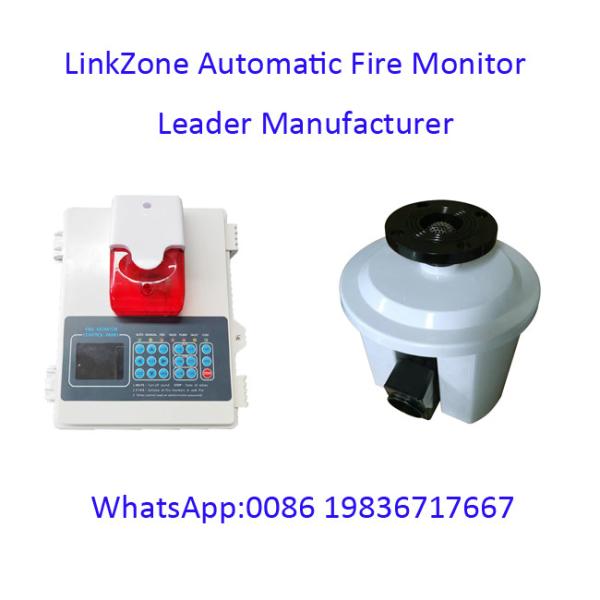

Early warning water cannon Fire Fighting Monitor For Fire Protection

Product Description

The automatic fire fighting monitor is widely used in large-space places whose heights are between 6-25m. It applies the micro processor to control the fire monitor.It can probe fire the first time with detection technology of infrared sensing, ultraviolet
sensing and plasma sensing and put out fire in the bud. This product has high efficient
that it can start and stop automatically and repeatedly with quick response.
The homing fire extinguishing device has main units of fire extinguishing unit, solenoid
valve, service valve, manual alarm button, aud ibleand visual alarm, manual
controller, zone control box, end water-test-equipment and pipeline. The installing
contains pipeline installing and electrical installing.
The autoamtic fire fighting monitor is a new auto-scan and positioning fire extinguishing device, which combines
function of fire probing and extinguishing. It can probe fire, send alarm signals and adjust
direction to aim at fire to put out it automatically. When a fire happens, it adjusts its nozzle
direction and aim at fire after logic analysis of microprocessor. It is of features of timely
probing, accurate positioning, concentrate flow jet, auto starting and stopping and big
working range.

PRODUCT SPECIFICATIONS

No	Item	Standard &Requirements	Inspection results
1	Rated working pressure (MPa)	≤0.8	0.6	/
2	Rated flow (L / s)	5×(1±8%)	5.05	/
3	Maximum protection radius(m)	≥30	30	/
4	Jet radius (m)	≥34	34	/
5	Monitoring radius(m)	≥40	40	/
6	Positioning time(s)	≤30	29.5	29.9
7	Installation height (m)	6~15	6	15
8	Horizontal swing angle(°)	≥180	360
9	Minimum pitch profile(°)	-90~+30	-90~+30
10	Diameter of water-inlet(mm)	Φ 34.5 ± 0.5	Φ 34.5 ± 0.5
11	Diameter of water-outlet(mm)	Φ 15.5 ± 0.5	Φ 15.5 ± 0.5

PRODUCT CONFIGURATION

SALES AND SERVICE NETWORK

Successful Project

FAQ

Q1: Are you a manufacturer?

A1: Yes. We are a professional manufacture of automatic fire fighting monitor, like Full-auto Fire Monitor|Fire Water Cannon.

Q2: What certificates do you have?

A2: We only have CCC and ISO at present. We will do FM later.

Q3: What are the advantages of your automatic fire fighting monitor?

A3: Our automatic fire fighting monitor integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Automatic Fire Extinguishing.

We are a National Standard high-tech firefighting equipment manufacturing Enterprise from China and we do technology researching,structural designing,production, sales and service all by ourself.We have the most advanced technology for automatic fire targeting technology.We are the member of China Fire Protection Association.We have obtained 23 utility model patents, 8 invention patents and 35 computer software copyright rights for our fire monitors.Our main product is automatic fire monitors which have been used in thousands of projects in China and overseas.We have small water cannons,large normal water cannons,large explosion proof water/foam cannon,large explosion proof and waterproofing water/foam cannon.Our products are very popular with the Chinese government.

Our products are widely used in Industrial,commercial and residential fields.Such as airport, high-speed railway station, bus station, power plants,industrial plants,chemical plant, warehouses,gas station, oil port,hotel atrium, museum,cinema, library, TV studio, gymnasium, science and technology museum, exhibition hall, convention center, theater, cinema, civic activity center, helicopter hangar,  logistics centers, hospitals, large shopping malls, commercial complexes, colleges and universities, coal mines and other places with large space.
